Simple operation
Visual pallet-pattern programming helps production staff create and change jobs on the touchscreen.
AUTOMATIC PALLETIZING SERIES
Automatic palletizing with visual programming.
A compact collaborative palletizing workstation for cartons and cases. Operators build pallet patterns on the touchscreen, change products quickly and run repeatable end-of-line stacking without robot programming experience.
≤ 2 hInstallation and commissioning
≤ 5 minNew pallet pattern setup
8-12Typical boxes per minute by model
±0.04 mmRepeat positioning accuracy
DESIGNED FOR LINE-END AUTOMATION
Teach the stack visually. Change the job quickly.
The 15-inch touchscreen and HB palletizing software guide operators through pallet size, box size and stacking pattern setup. The integrated base, robot, electrical cabinet, conveyor and mechanical pallet positioning system reduce site assembly work.
- Graphical setup without writing robot code
- Up to 800 palletizing paths can be stored
- Two products can be stacked in parallel
- Label orientation function available
REAL OPERATION FOOTAGE
Automatic product handling in production.

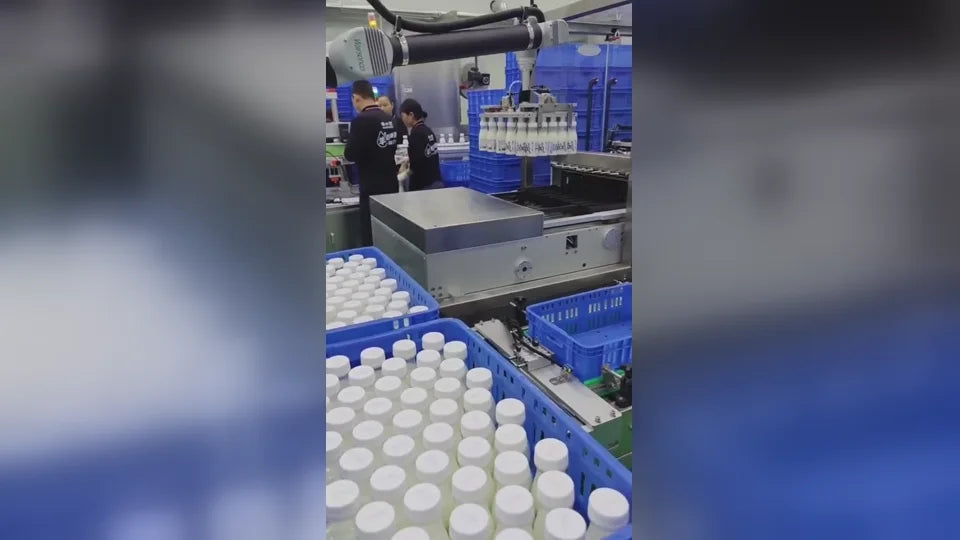

The video shows a collaborative robot using a multi-point gripper to transfer rows of bottled products between the line and reusable crates. Actual cycle time and gripper design depend on the product and container.
Multi-point product gripperReusable crate loadingContinuous robot transfer
PRO & MAX SERIES
Select by payload, reach and target cycle.
Representative configurations below are taken from the supplied collaborative palletizer catalogue. Final layout, gripper, conveyor and safety package are confirmed for each project.
| Model | Robot payload | Working radius | Stacking speed | Vertical reach | Protection |
|---|---|---|---|---|---|
| HB-GD20 Pro | 20 kg | 1,900 mm | <12 pcs/min | Fixed H1: 2,100 mm | IP54 |
| HB-GD40 Pro | 40 kg | 1,900 mm | <9 pcs/min | Fixed H1: 2,100 mm | IP54 |
| HB-GD12 Max | 12 kg | 1,900 mm | <12 pcs/min | Lift H2: 2,600 mm | IP54 |
| HB-GD20 Max | 20 kg | 1,600 mm | <12 pcs/min | Lift H2: 2,100 mm | IP54 |
All listed configurations use TCP/IP communication and a 0-55°C catalogue operating range. Cycle rate depends on carton, gripper, stack pattern and travel distance.
APPLICATION FIT
Built for repeatable carton handling.
Suitable for end-of-line palletizing in food, pharmaceuticals, daily chemicals, 3C electronics, printing, e-commerce and other packaged-goods operations.
Flexible deployment
Compact integrated construction supports line relocation and product changeovers.
Project safety options
Laser radar sensors, photoelectric sensors and physical safety fencing can be configured to suit the site.
CONFIGURE YOUR PALLETIZING CELL
Send your carton and pallet data.
Share carton dimensions and weight, pallet size, target stack pattern, required throughput and available floor space. Our team will review the robot, gripper and conveyor configuration.
