PRODUCT CENTER

THREE TECHNOLOGIES. ONE CONNECTED PRODUCTION SYSTEM.

Explore laser marking, packaging automation and HNLC digital operations as independent products or one integrated factory solution.

LASER MARKING

CO2, fiber, UV and turnkey cells.

Permanent industrial identification engineered around material, mark quality and cycle speed.

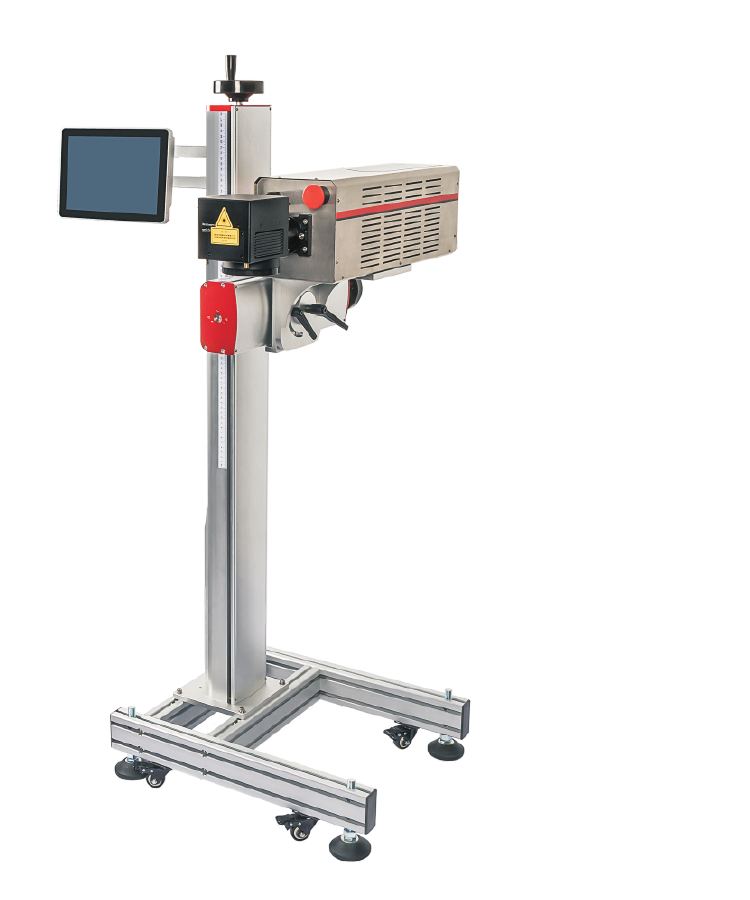

HA-8-D30C CO2 dispensing bag marking system

CO2 Dispensing Bag Marking System

A mobile 30 W CO2 laser system for high-speed coding on dispensing bags and packaging lines.

View selection details

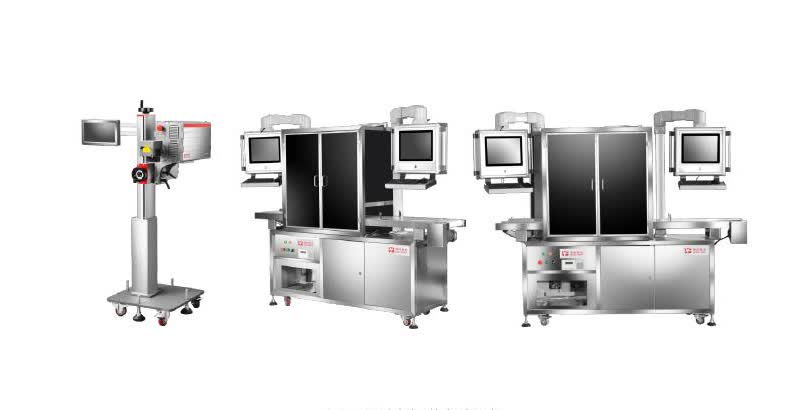

Vision positioning, laser marking and rejection system

Vision Positioning, Marking & Rejection System

Machine vision locates each product, the laser marks the target area, inspection checks the result and nonconforming products are rejected automatically.

Discuss Your Project
View All Laser Systems

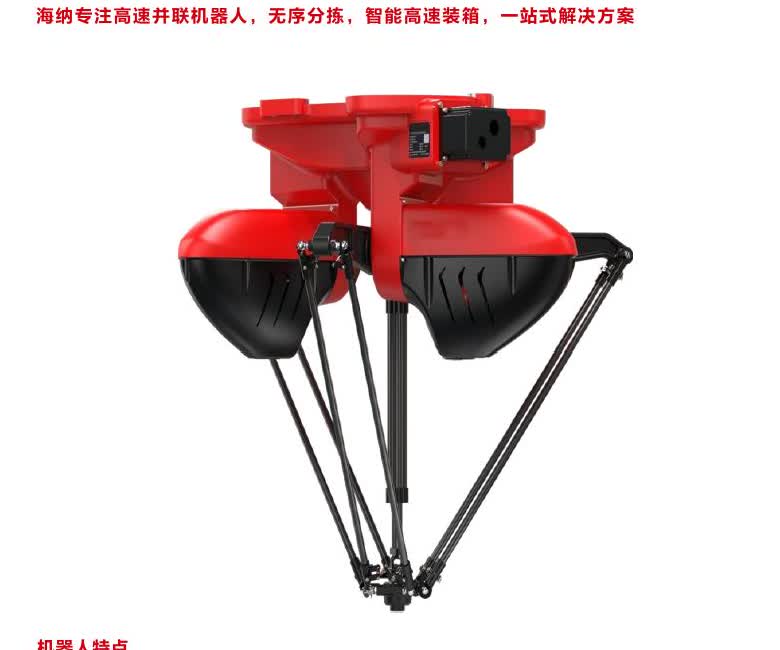

HAINA high-speed delta robot

PACKAGING AUTOMATION

High-speed robotic handling.

Four-axis motion, vision positioning and product-specific end tooling create reliable automation for food, beverage and consumer-goods lines.

80-180
Picks per minute
1,000 mm
Working diameter
3 kg
Rated payload
Explore Automation
Automatic visual palletizer

NEW PALLETIZING SERIES

Automatic visual palletizer.

Collaborative end-of-line palletizing with visual pattern setup, selected payloads from 12 to 40 kg and integrated conveyor options.

View Palletizer Series

HNLC PLATFORM

Centralized production intelligence.

HNLC links equipment, people and production information with controlled access and real-time system status.

  • Remote start, stop and parameter control
  • Work-order, template and permission management
  • MQTT, TCP/IP and REST connectivity
Explore HNLC

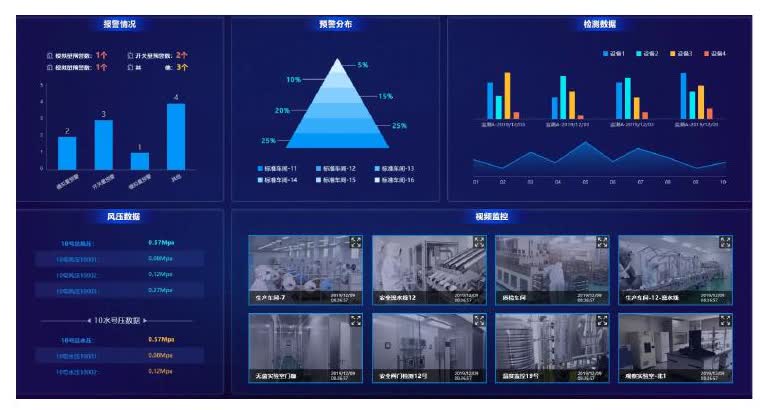

HNLC production dashboard

PRODUCT & ENGINEERING SCOPE

More than a standalone laser marker.

HAINA company materials cover laser coding, inspection, traceability, packaging automation and connected production. Select the project scope around the actual material and line requirement.

01

Laser coding sources

Fiber, CO2, UV and green-light technologies are represented across HAINA materials. Availability and model naming must be confirmed in the current quotation.

02

Vision inspection

Camera positioning, code inspection and rejection can be reviewed when mark verification is part of the production requirement.

03

Product traceability

Connect codes, work orders and production records when the project requires controlled data flow and traceability.

04

Packaging integration

Combine marking with conveying, sensing, sorting, picking or packing as a defined production-line project.

The domestic website and supplied catalogs use different series names. Confirm the export model, wavelength, power, interfaces and compliance documents before ordering.

Compare the catalog series

Start with the material, then confirm power and integration through a marking review.

2026 product selection reference. Confirm current availability, final configuration and sample results before ordering.

NF, HC and HN below are catalogue model families. EF/HF, EZ and HA-8-D30C names are not treated as equivalent models; confirm the exact source, optics and ordered configuration in your quotation.

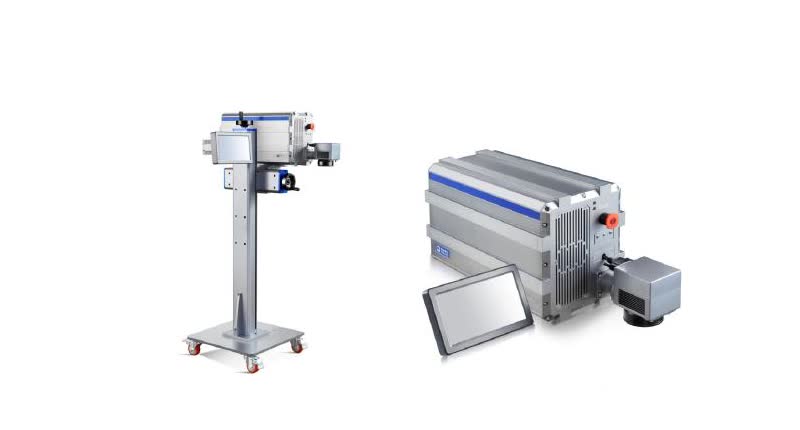

Fiber laser

Aluminum, steel, iron and selected PVC, PE and ABS formulations are listed in the catalog. Suitability depends on the exact material, surface and required contrast.

Catalog modelsNF-102 / NF-103 / NF-105 / NF-910
Wavelength1064 nm
Power options20 / 30 / 50 / 100 W
CoolingAir cooling
Discuss this series

CO2 laser

The catalog lists paperboard, wood, glass and selected packaging films or coated materials. Send the actual packaging sample: results vary with coatings, film layers and formulation.

Catalog modelsHC-830 / HC-860 / HC-910
Wavelength10.6 micrometers
Power options30 / 60 / 100 W
CoolingAir or water cooling; confirm configuration
Discuss this series

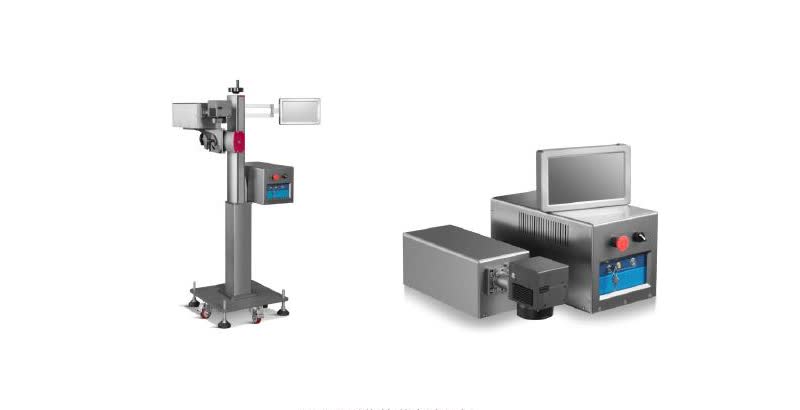

UV laser

The catalog lists selected PE, PC, PVC, EVA, ABS, PP and PET materials, printed surfaces and flexible packaging. Validate readability and the packaging surface on your actual sample.

Catalog modelsHN-650Z / HN-850Z / HN-950Z
Wavelength355 nm
Power options5 / 10 / 15 W
CoolingWater cooling
Discuss this series

Fiber Laser Marking Machines | HAINA NF Series

CO2 Laser Coding Machines | HAINA HC Series

UV Laser Marking Machines | HAINA HN Series

Laser Coding for Food & Beverage Packaging

Laser Marking for Cables & Pipes

FREQUENTLY ASKED

Before your project starts.

Answers to the questions our engineering team uses to define a reliable system.

Which laser should I use?+

The correct source depends on material, mark content, contrast, permanence and cycle time. We confirm it through sample testing.

Can HAINA integrate with an existing line?+

Yes. We design mechanical, electrical, PLC and communication interfaces around your current equipment.

Does HNLC connect to MES or ERP?+

HNLC supports MQTT, TCP/IP and REST interfaces for controlled upstream and downstream integration.

What information should I send?+

Product photos, material, mark sample, line speed, installation space and available control signals are the best starting point.

Do you provide commissioning and training?+

Commissioning and operator training can be discussed as part of the quotation. Confirm remote or on-site support, language, timing and spare-parts arrangements for your destination.

START A PROJECT

Find the right laser for your application.

Share your material, code and production speed. We will review the application before recommending a configuration.
